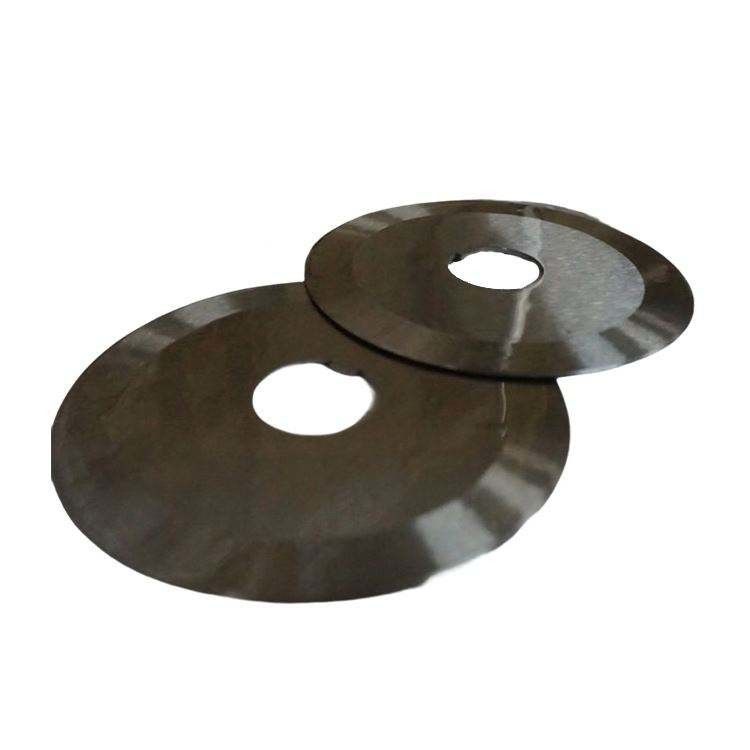

Slitting Saw Blade 2mm Stainless Steel Film Slitting Blade For Slitting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | ISO9001 |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | use anti-rust oil in plastuc bag and Packed in strong plywood case |
| Delivery Time: | 30-35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
|
Detail Information |
|||
| Name: | Metal Slitter Knives | Other Name: | Coil Slitter Blade, Rotary Shear Blades |
|---|---|---|---|
| Material: | SKD11,D2 | Thickness Tolerance: | +-0.001mm |
| Inner Diameter: | +0.02mm | Flatness: | ≤0.002mm |
| Parallelism: | ≤0.002mm | Concentricity: | ≤0.02mm |
| Surface Roundness: | Ra0.1um | Hardness: | Tool Steel: HRC61~63 |
| Application: | Cold Rolling Mill Plants | ||
| Highlight: | Slitting Saw Blade 2mm,Slitting Machine steel cutting blade,Stainless Steel Film Slitting Blade |
||
Product Description
Slitting Saw Blade 2mm Stainless Steel Film Slitting Blade For Slitting Machine
|
Product name
|
Slitting round blades
|
|||
|
Material
|
9Crsi/ Cr12Mov/ W6
|
|||
|
Features
|
High corrosion resistance
High hardness
High wear resistance
Heat resistance
|
|||
|
Specification
|
mm
|
Outer diameter(mm)
|
Inner diameter(mm)
|
Thickness(mm)
|
|
105*65*1.2(9CrSi)
|
105
|
65
|
1.2
|
|
|
105*70*1.0(9CrSi)
|
105
|
70
|
1.0
|
|
|
105*70*1.2(9CrSi)
|
105
|
70
|
1.2
|
|
|
105*75*1.2(9CrSi)
|
105
|
75
|
1.2
|
|
|
105*70*1.2(Cr12Mov)
|
105
|
70
|
1.2
|
|
|
105*75*1.2(Cr12Mov)
|
105
|
75
|
1.2
|
|
|
105*75*1(W6)
|
105
|
75
|
1
|
|
|
105*70*1.2(W6)
|
105
|
70
|
1.2
|
|
- Available in D2,D3,HSS,H11,H13
- Used for Slitting & trimming mild steel,CRGO,CRNGO,Stainless Steel,Aluminium,Brass & Copper
- Sharp,uniform shearing edge after regrinding.
- High productivity & low downtime.
- Thickness tolerance 0.0015mm ; Flatness tolerance 0.001mm (depends on OD & thickness)
- Lapping for finish upto 0.2 Ra
- Manufacture upto 600mm OD
- Optimum hardness for wear resistance
- Cutting capacity range: 0.1mm to 24mm thick strip
- Surface finish: ground, lapped and polished.
