Rotary Shear Slitting Knives HRC53 - 55 For Metal Shear Slitting Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | ISO9001 |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | anti-rust oil in plastic bag and Packed in strong plywood case |
| Delivery Time: | 30-35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
|
Detail Information |
|||
| Name: | Sheet Metal Slitter Rotary Slitting Knives | Other Name: | Slitter Blade, Sheet Rotary Slitter Blade |
|---|---|---|---|
| Material: | SKD11,D2, M2, HSS, KL-56 | Thickness Tolerance: | +-0.001mm |
| Inner Diameter: | +0.02mm | Flatness: | ≤0.002mm |
| Parallelism: | ≤0.002mm | Concentricity: | ≤0.02mm |
| Surface Roundness: | Ra0.1um | Hardness: | Tool Steel: HRC53~55 |
| Application: | Sheet Metal Slitting Lines, Sheet Metal Slitter Machine | ||
| Highlight: | Rotary shear slitting knives,metal shear blades HRC55,shear slitting knives HRC53 |
||
Product Description

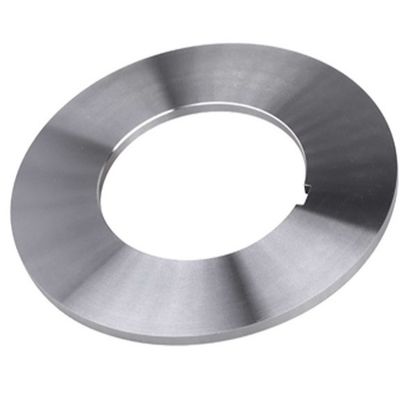

Rotary Shear Slitting Blade For The Metal Shear And Slitting Industry
SLITTING CUTTERS are manufactured from tool steel and special alloy steel according to the application requirement. We have a manufacturing facility to produce sizes up to 650mm in diameter and slit up to 16mm thick coils. We also manufacture precision cutting tools with the thickness tolerance of 0.0015mm and flatness of.0025mm depending on the OD and thickness. This is possible with our precise Lapping Machines. Closer tolerances & special surface finishes are also possible.
An in-house deep cryogenic treatment gives the knife a finer microstructure which enhances the life of the tool. SPACERS are manufactured using through hardened tool steel. Atlas offers lightweight and also Ultra lightweight spacers which are nearly 65-70% lighter than the conventional steel spacer. This makes the job of the operator easier and causes less fatigue. To ease assembly and removal of tools, we offer Split design. The spacers can also be lapped to the highest level of precision.
| Country of Origin | China |
| Material | D2, M2, HSS, KL-56 etc |
| Size: | Customized |
| Thickness tolerance | +- 0.001mm |
| Inner Diameter | +0.02mm |
| Flatness | ≤0.002mm |
| Parallelism | ≤0.002mm |
| Concentricity | ≤0.02mm |
| Surface roundness | Ra 0.1um |
| Hardness | TCT: HRA 89~93, Tool steel: HRC53~65 |
| Packaging | wooden box with anti-rust film inside |
| Application | For slitter machine, rolling mill equipment etc. |
Application of the Sheet metal slitter machine Rotary slitting knives for metal sheet processing:
1. Normally for hot rolling processing: 1mm~12.7mm mild steel sheets, stainless steel sheet etc.
2. Normally for cold rolling processing: 0.02mm~3.2mm carbon steel sheets, stainless steel sheets, galvanized sheets etc.
