75rpm Mini Single Shaft Shredder PVC Scrap Metal Wood Shredder
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | CE ISO |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | film or plywood package suit for shipping |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Pcs /month |
|
Detail Information |
|||
| Highlight: | 75rpm Single Shaft Shredder,Metal Wood Shredder,PVC Scrap Single Shaft Shredder |
||
|---|---|---|---|
Product Description
Single Shaft Shredder Machine For Pvc Scrap Metal Wood Shredder For Mini Shredder
1. The single shaft plastic shredder is mainly used in all kinds of hollow or solid plastic material. The shredder machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics.
2. This single shaft plastic shredder is new designed especially for shredding various big solid materials, unmanageable materials,
plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
3. The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.

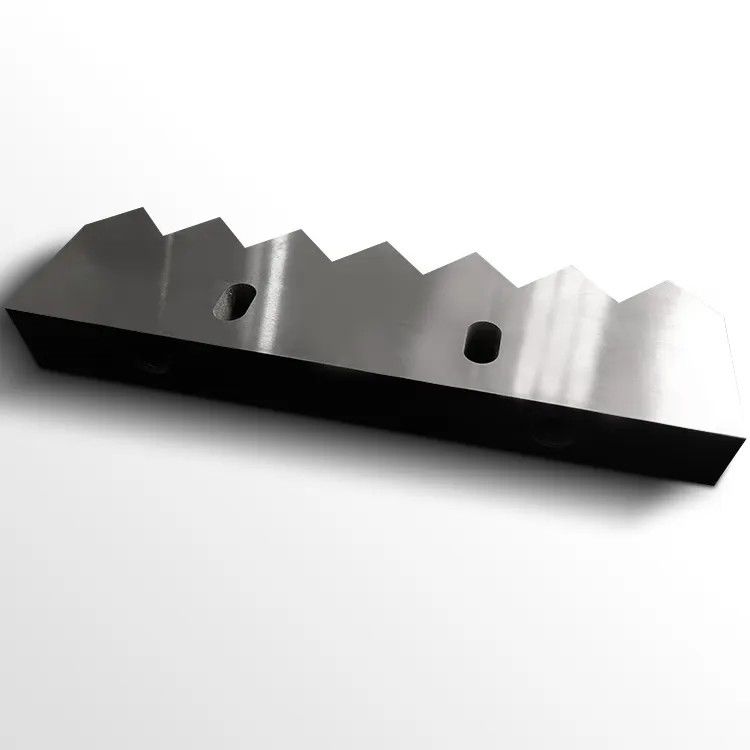

Blade
1. The blade base and blade on the rotary roller can be disassembly. It is easy to clean and maintenance.
2. The rotary blade use V shape installation so that the blade can cut material evenly, it can decrease the noise and decrease
energy consumption.
3. Each fixed blade with 2 cutting knife dege, when the fixed blade is wear, it can be rotated to 180 degree, then the blade cancontinue to use.
Specifications:
| Model | HR600S | HR600 | HR800S | HR800 | HR1000 | HR1200 |
| Main Motor | 18.5KW | 22KW | 30KW | 37KW | 45KW | 55KW |
| Hydraulic Motor | 2.2 | 2.2 | 2.2 | 3.75 | 3.75 | 5.5 |
| Main Shaft Dia | 220MM | 350MM | 350MM | 400MM | 400MM | 400MM |
| Feeder port Size | 600*700MM | 600*1100MM | 800*1100MM | 800*1200MM | 1000*1300M | 1200*1400MM |
| Rotary Cutter | 24PCS | 34PCS | 46PCS | 50PCS | 58PCS | 70PCS |
| Fixed Cutter | 1unit | 1unit | 2units | 2units | 2units | 3units |
| Hydraulic thrust width | 620mm | 670mm | 820mm | 850mm | 850 mm | 1000mm |
| Main Shaft Speed | 85rpm | 75rpm | 85rpm | 85rpm | 85 rpm | 85 rpm |
| Mesh size | 35-40mm | 35-40mm | 35-40mm | 35-40mm | 35-40mm | 35-40mm |
| Capacity (kg/h) | 300-500 | 500-700 | 700-800 | 800-1000 | 1000-1200 | 1200-1500 |
| Machine Weight | 1550kg | 2000kg | 2800kg | 3600kg | 4000kg | 5000kg |
| Dimension (L*W*H) | 1700*1130*1780 | 1865*1420*1800 | 2470*1420*2000 | 2600*1670*2200 | 2770*1870*2200 | 2990*2370*2200 |
1. Stable performance: Stable performance and easy operation, so you can buy it with confidence;
2. Factory direct sales: Source manufacturers, price concessions, worry-free after-sales.
3. Complete supporting: Complete supporting facilities, complete functions, easy operation, and stable quality, have reached the advanced level of similar domestic molding machines and production lines
Application Areas:
• plastic sheets;
• electronic waste;
• scrap (components, subassemblies; consumables);
• metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
• aluminum cans;
• wood(wooden pallets or fruit boxes);
• plastic(plastic bottles or canisters);
• waste tire, rubber;
• waste household appliances;
• paper waste (cardboard, newspaper, office paper, books, magazines, kraft paper, paper core, cardboard tube, paper packaging material);
• textiles (rags, garments, carpet);
• animal bones and organic waste.
FAQ:
3. Q: Are you a factory or a trading company.
A: we are a professional factory who gets 20+ years professional experience
5. Q: How long is your warranty?
A: Within 1 year from date of the factory, if parts are failure or damage cause of the quality problem (except wearing parts), we provide these parts for free.
