High Toughness High Wear Resistance Rubber Bonded Spacers Slitting Spacers
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | CE ISO |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | film or plywood package suit for shipping |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Pcs /month |
|
Detail Information |
|||
| Thickness Tolerance: | +/-0.002mm | Standard: | ISO |
|---|---|---|---|
| Size: | OD Max. Reach 1300mm | Merits: | High Wear Resistance With Good Toughness |
| Material: | Hard Alloy Tool Steel , Optional Materials | Application: | Coil Slitting Line |
| Highlight: | High Wear Resistance Rubber Bonded Spacers,rubber ring spacer 1300mm,High Toughness Rubber Bonded Spacers |
||
Product Description

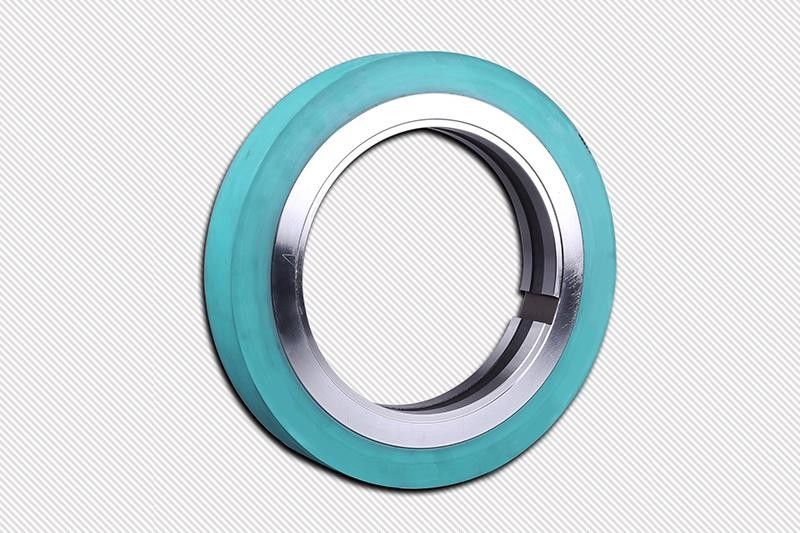

Slitting Spacers Rubber Bonded Spacers
Slitting Spacers /Rubber Bonded Spacers
Liangru manufactures spacers made of hardened alloyed tool steelThe spacersare used together with the stripper rings for the exact positioning of rotary slitter knives on theslitter arbor and for precisely adjusting the knife clearance.
Characteristics:
. Graduated in thickness from 3 to 100 mm (in exceptional cases up to 250 mm) .
Different colors Special dimensions of steel cores for trimming systems
· Divided spacers
· Excellent oil and abrasion resistance
Cutting Applications:
. Ejecting
. Conveying
· Lifting (protecting the material surface)
· Supporting (stabilizing the material)
Specifications:
|
Materials
|
Alloy, polyurethane, hub steel or others
|
|
OEM & ODM
|
Provided
|
|
Merits
|
High toughness, High wear resistance
|
|
Size
|
Custom
|
|
Surface Finish
|
Ra0.4 or less
|
|
Package
|
Plywood case
|
|
Parallelism
|
0.002mm
|
|
Thickness tolerance
|
±0.002mm
|
Key Benefits:
◆ Single or Multi-Keyway lock and dirt groove available
◆ Cutting capacity ranging from 0.05mm to 25mm thick coil strips
◆ Tolerance up to 0.003 or +/-0.0025mm
◆ Forged and triple-tempered to ensure the best hardness and wear-resistance
◆ Precision ground, polish, lapping finishes, and even Ti-Coating finishes available
FAQ:
3. Q: Are you a factory or a trading company?
A: We are a professional factory who gets 20+ years of professional experience
5. Q: How long is your warranty?
A: Within 1 year from the date of the factory, if parts are a failure or are damaged the cause of a quality problem (except wearing parts), we provide these parts for free.
