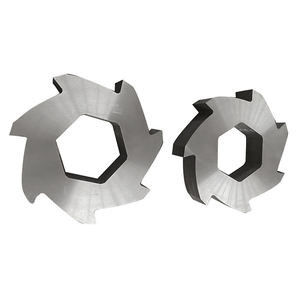

HRC 56 - 58 Metal Shredder Blade For Plastic Shredder Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | CE ISO |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | film or plywood package suit for shipping |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Pcs /month |
|
Detail Information |
|||
| Product Name: | Industrial Cutting Blades | Material: | D2, D2, SKD11,Cr12Mov... |
|---|---|---|---|
| Hardness: | HRC 56-58 | Precision: | +-50 Micron |
| Packaging: | Paper Box / Plastic Bag / Blister / Carton For Exportation | Diameter: | 270 Mm |
| Highlight: | HRC 58 Metal Shredder Blade,HRC 56 replacement shredder blades,HRC 56 Metal Shredder Blade |
||
Product Description
High Haderness Metal Shredder Blade For Plastic Shredder Machine
Description:
Double shaft shredder blade is one of the important parts of the shredder. The quality and correct installation of the blade largely determine the use effect and life of the shredder. Generally, the spiral mounting method is adopted, and the spacer sleeve is separated in the middle. The thickness of the blade should be 0.2 to 0.3 thick to prevent the blade from colliding during operation and choose a reasonable thickness and number of teeth according to the size of the product.
With the development and innovation of the blade industry, the quality of the raw materials of the blade is increasing. The shredder blades are commonly used in a variety of materials, and the materials are generally selected according to different processing objects:
Common materials used in the plastic industry are 42CrMo, W5SiCr, SKD-11;
Common materials used in the metal industry are: 6CrW2Si, Cr12Mov, LD, H13;
Common materials used in the wood industry are: 5WSiCr, 6CrW2Si, SKH, SKD-11, D2;
The heat treatment reached HRC 55-57.
According to the material of the shredder shredded product, choose the appropriate blade. For rubber, the shredding of the film generally adopts the blade of Cr12mov. For the shredding of wood and plastic, the blade of 55sicr is generally used, shredded scrap, popped flower and flower iron. A blade using H13 is suitable because H13 is a hot work die steel which is a steel formed by adding alloying elements to carbon steel. It has good comprehensive performance at medium temperature, high hardenability and low heat treatment deformation rate, high-temperature resistance, and low deformation. Therefore, it is more suitable for shredding metal products.
Commonly used twin-shaft shredder blades. The inner hole is generally an inner hexagon, and the outer circumference commonly has three claws, six claws, eight claws, and twelve claws. The number of jaws, the clearance and the distance from the blade to the spacer determine the size of the shredded material. Generally, the shredder blades are available in diameters from 200mm to 500mm and thicknesses from 20mm to 55mm. They can also be customized according to customer needs.
Specifications:
|
Product name
|
Double Shaft Shredder Blade
|
|
Application machine
|
Shredder Machine
|
|
Application
|
Rubber/Tire Recycling
|
|
Size
|
Diameter:500*50
We can customize products according to your request
|
|
Material
|
SKD11, 9crSi,Cr12Mov
|
|
Hardness
|
HRC57°~59°
|
|
Certification
|
ISO:9001
|
|
Packing
|
1. Anti-rust oil
2. Wrap PE coated wax paper
3. Wooden box packaging
|
1. Easy and fast cutting, sharp edge.
2. Long lifespan and stable performance.
3. Good cutting result and high efficiency.
2. We check the flatness degree to see if it is up to standard.
3. We also do some cutting experiments to check its using function.
4. Professional manufacturing assembly line.
FAQ:
3. Q: Are you a factory or a trading company?
A: We are a professional factory who gets 20+ years of professional experience
5. Q: How long is your warranty?
A: Within 1 year from the date of the factory, if parts are a failure or are damaged the cause of a quality problem (except wearing parts), we provide these parts for free.
