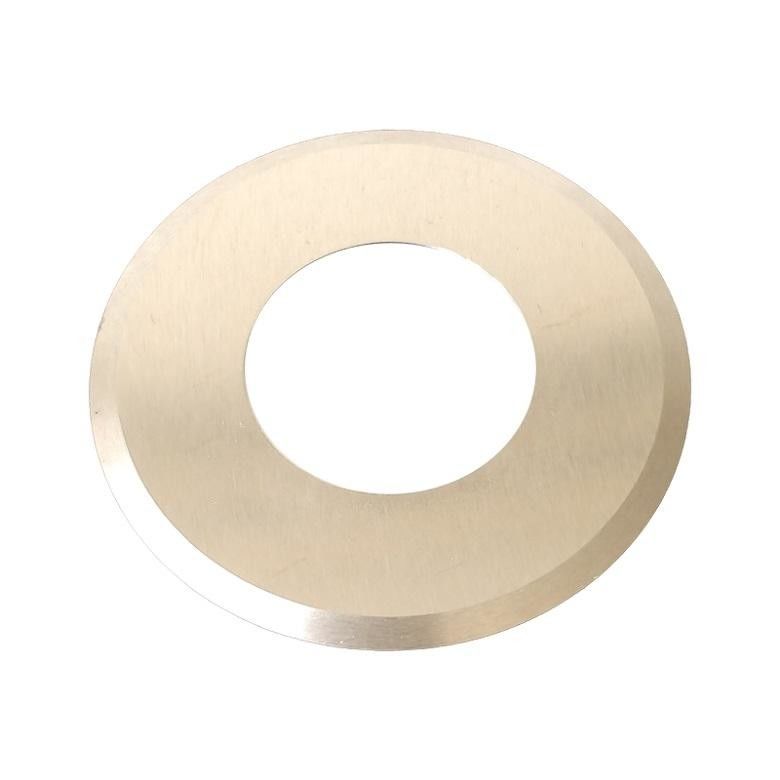

Circular Tungsten Carbide Rotary Slitting Shear Cutter Blade OEM ODM
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | ISO9001 |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | anti-rust oil in plastic bag and Packed in strong plywood case |
| Delivery Time: | 30-35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
|
Detail Information |
|||
| Name: | Coil Slitting Knives | Other Name: | Coil Slitter Blade |
|---|---|---|---|
| Material: | LD, SKD11,D2, M2, HSS, TCT Etc | Thickness Tolerance: | +-0.001mm |
| Inner Diameter: | +0.02mm | Flatness: | ≤0.002mm |
| Parallelism: | ≤0.002mm | Concentricity: | ≤0.02mm |
| Surface Roundness: | Ra0.1um | Hardness: | 53~55HRC |
| Application: | Metal Coil Processing Factory | ||
| Highlight: | Shear Cutter Blade OEM,circular slitter blade SKD11,Tungsten Carbide Cutting Blades ODM |
||
Product Description
OEM/ODM Circular Tungsten Carbide Rotary Slitting Shear Cutter Blade
1. The blade is made from 100% virgin carbide materials. No any recycle materials.
2. The blade was pressed with high pressures and heat treatment. it becomes very hardness. HRA90 is possible.
3. After grinding carefully and double checks, insure the blade precision and sharpness.
4. Because of made from carbide material. The blade have longer working time than normal metals steel blades.
5. Now we have Zund, ESKO, ELITRON, ATOM, ECOCAM blades. so if possible, pls advise us code number, then we can check stock for you.
6. We are manufacturer. So we accept OEM or ODM customized orders. The lead time is about 30days if no stock. But if we have rough blade stock, The lead time can be 15 days.
| Country of Origin | China |
| Material | D2, M2, HSS, TCT etc |
| Size: | Max. Cutting Size : outside diamete r: ￠800, thickness : 60mm |
| Thickness tolerance | +- 0.001mm |
| Inner Diameter | +0.02mm |
| Flatness | ≤0.002mm |
| Parallelism | ≤0.002mm |
| Concentricity | ≤0.02mm |
| Surface roundness | Ra 0.1um |
| Hardness | HRC53~55 |
| Packaging | wooden box with anti-rust film inside |
| Application | metal coil processing factory |
We offer slitter knives of Diameter max1500mm in various material options such as H13, H13K , SKD11, LD , D2 and so on. Our knives are offered in hardness range of 52-64 HRC with Thickness tolerances of up to +/- 0.001mm. We offer flatness within - 0.002mm and Parallelism tolerances within 0.002mm.
