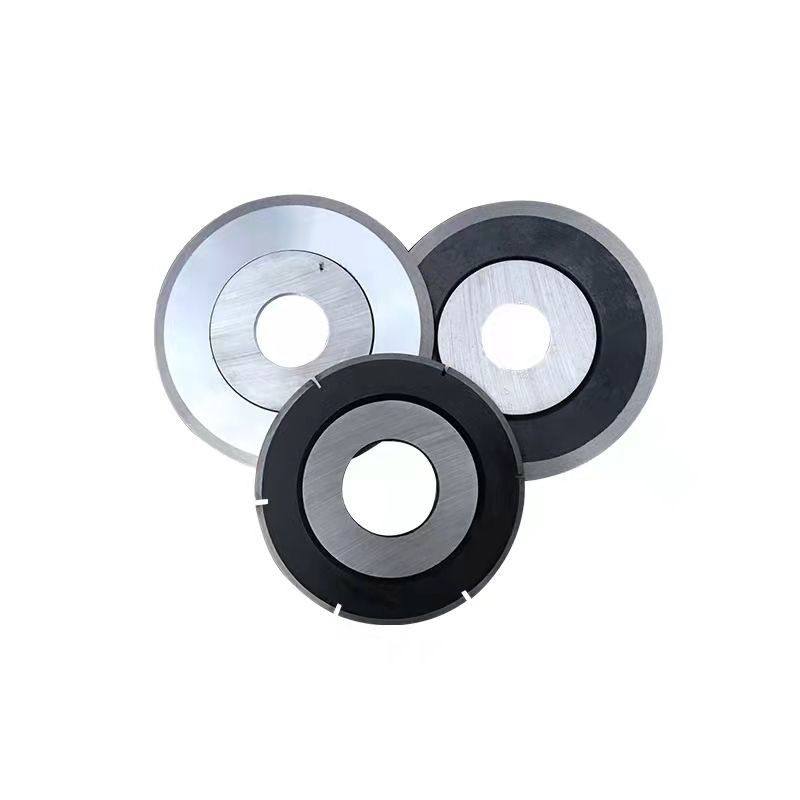

Circular Shear Slitter Blade For Slitting CR HR STEEL COILS
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | ISO9001 |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | use anti-rust oil in plastuc bag and Packed in strong plywood case |
| Delivery Time: | 30-35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
|
Detail Information |
|||
| Name: | Metal Slitter Knives | Other Name: | Coil Slitter Blade, Rotary Shear Blades |
|---|---|---|---|
| Material: | SKD11,D2, Cr12MoV | Thickness Tolerance: | +-0.001mm |
| Inner Diameter: | +0.02mm | Flatness: | ≤0.002mm |
| Parallelism: | ≤0.002mm | Concentricity: | ≤0.02mm |
| Surface Roundness: | Ra0.1um | Hardness: | Tool Steel: HRC62~64 |
| Application: | Hot Rolling Mill Plants | ||
| Highlight: | Circular Shear Slitter Blade,circular slitting knife CR,circular slitter knife HR |
||
Product Description
Circular Shear Slitter Blade For Slitting CR HR STEEL COILS
Flatness and Parallelism
Sufficiently high flatness and parallelism are necessary conditions to ensure that the shear clearance between the upper and lower slitter blades of the slitting machine is always consistent during dynamic operation. Correct clearance is at the heart of ensuring precision cutting. If the surfaces of circular slitter knives are not flat, or the blade's two sides are not parallel, the gap between the upper and lower blades is always changing. In addition, the reaction force generated by the extrusion of the strip during slitting also causes the gap to change continuously. This will make it impossible to get burr-free strips.
Thickness Tolerance
The thickness tolerance of the blade is mainly to ensure the cutting accuracy of the width of the metal strip and prevent the cumulative error in the knife assembly. If a blade with a thickness tolerance of 1~2 μm or even 0.5 μm cannot be provided, the cumulative error when multiple shearing knives are assembled is unavoidable.
Surface Roughness
Good surface roughness of the slitter knife surface can improve the rigidity of the entire shearing system, increase the sharpness of the blade, reduce micro-cracks on the blade and prolong the life of the blade. Different machining processes can result in different surface finishes. For high-precision non-ferrous metal processing, it is generally necessary to choose 0.05 - 0.1 μm. For slitting other thin coils, a surface roughness of 0.1 - 0.2 μm can be chosen.
Features:
| Rotary Slitter Blades | |||||
|
Categories
|
China(GB/T YB)
|
Euro(DIN/BS/NF)
|
American(AISI)
|
Japan(JIS)
|
ISO
|
|
Alloy
Tool
Steel
|
9CrSi
|
―
|
―
|
―
|
―
|
|
6CrW2Si
|
―
|
―
|
―
|
50WCrV8
|
|
|
Cr12Mo1V1
|
1.2379
|
D2
|
SKD 11
|
X153CrMoV12
|
|
|
Cr12MoV
|
―
|
―
|
―
|
―
|
|
|
4Cr5MoVSi
|
1.2343
|
H11
|
SKD6
|
X37CrMoV5-1
|
|
|
4Cr5W2VSi
|
1.2606
|
H12
|
SKD62
|
―
|
|
|
4Cr5MoV1Si
|
1.2344
|
H13
|
SKD 61
|
X35CrMoV5-1
|
|
|
High
Speed
Tool
Steel
|
W18Cr4V
|
1.3355
|
T1
|
SKH2
|
HS18-0-1
|
|
W6Mo5Cr4V2
|
1.3341/1.3343
|
M2
|
SKH51
|
HS6-5-2
|
|
|
W6Mo5Cr4V3
|
1.3344
|
M3
|
SKH53
|
HS6-5-3
|
|
|
W6Mo5Cr4V2Co5
|
1.3243/1.3245
|
M35
|
SKH55
|
HS6-5-2-5
|
|
Available in D2,D3,HSS,H11,H13, KL-56
Used for Slitting & trimming mild steel,CRGO,CRNGO,Stainless Steel,Aluminium,Brass & Copper
Sharp,uniform shearing edge after regrinding.
High productivity & low downtime.
Thickness tolerance 0.0015mm ; Flatness tolerance 0.001mm (depends on OD & thickness)
Lapping for finish upto 0.2 Ra
Manufacture up to 600mm OD
Optimum hardness for wear resistance
Cutting capacity range: 0.1mm to 24mm thick strip
Surface finish: ground, lapped and polished.
