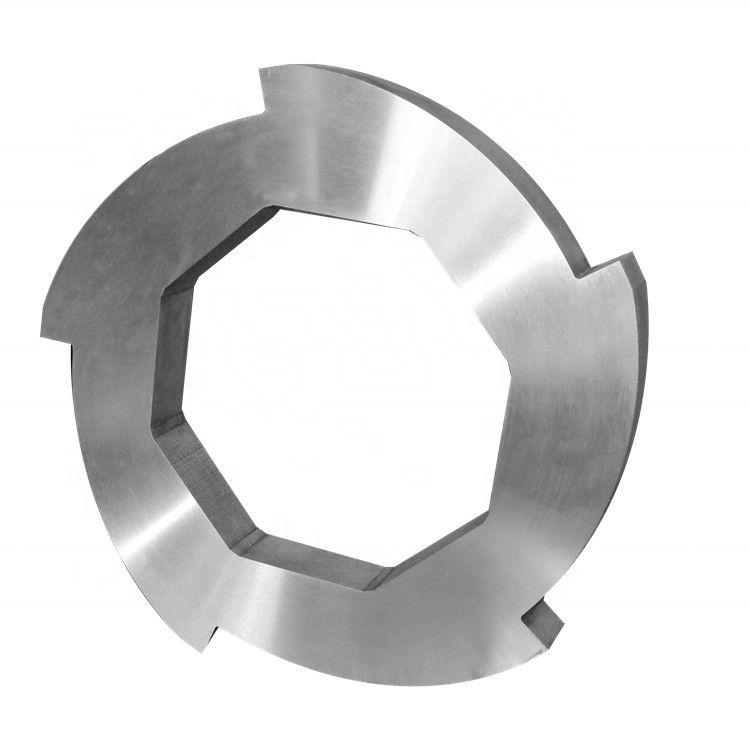

D2 Cr12MoV Circular Cutting Blades Circular Shear Blade For Metal Coil Slitting
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | ISO9001 |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | anti-rust oil in plastic bag, Packed in strong plywood case |
| Delivery Time: | 35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Name: | Circular Slitting Blades | Other Name: | Circular Slitting Knife |
|---|---|---|---|
| Material: | SKD11,D2, M2, Cr12MoV, LD | Thickness Tolerance: | +-0.001mm |
| Inner Diameter: | +0.02mm | Flatness: | ≤0.002mm |
| Parallelism: | ≤0.002mm | Concentricity: | ≤0.02mm |
| Surface Roundness: | Ra0.1um | Hardness: | HRC55~57 |
| Application: | Tinning Lines | ||
| Highlight: | Cr12MoV Circular Cutting Blades,Metal Coil Slitting circular slitter blades,D2 Circular Cutting Blades |
||
Product Description
Custom Circular Shear Blade For Metal Coil Slitting
This Round Shear Industrial Blade is made from a wide range of steels and carbide D2 tool steel, 420 stainless steel and 440B stainless steel, which providing our slitting customers with the right balance between economy and knife life.
- Country of Origin: China
- Material: SKD11,D2, M2, Cr12MoV, LD
- Size: Customized
- Thickness tolerance: +- 0.001mm
- Inner Diameter: + 0.02mm
- Flatness: ≤ 0.002mm
- Parallelism: ≤ 0.002mm
- Concentricity: ≤ 0.02mm
- Surface roundness : Ra 0.1um
- Hardness: Tool steel: HRC55~~57
- Packaging: wooden box with anti-rust film inside
- Application: Tinning Lines
|
Product Name
|
Factory Custom Slitting Machine Circular Slitter Knives Round Shear Industrial Blade
|
|
Dimensions
|
Customized
|
|
Optional Material
|
Stainless Steel 420 or D2 Steel or Customized Material
|
|
Our Service
|
This blade can be made from a wide range of steels and carbide grades upon requests
|
|
Lead Time
|
Generally, it will take about 30 days after the order is placed
|
|
Package
|
Plastic Bag+Foam+Carton Box+Wooden Case
|
Laying-off——Forging—— Annealing——Rough machining——Heat-treatment——Quenching——Cold and cryogenic treating——Tempering——Finish machining——Grinding——Inspection——Labeling——Packaging
Our Services:
Besides providing the high precision rotary slitting tools, we can provide corresponding services:
1. Design the slitting blades to meet the requirements of slitting system
2. Check and solve questions when happened during slitting
3. Regrinding the slitting tools
