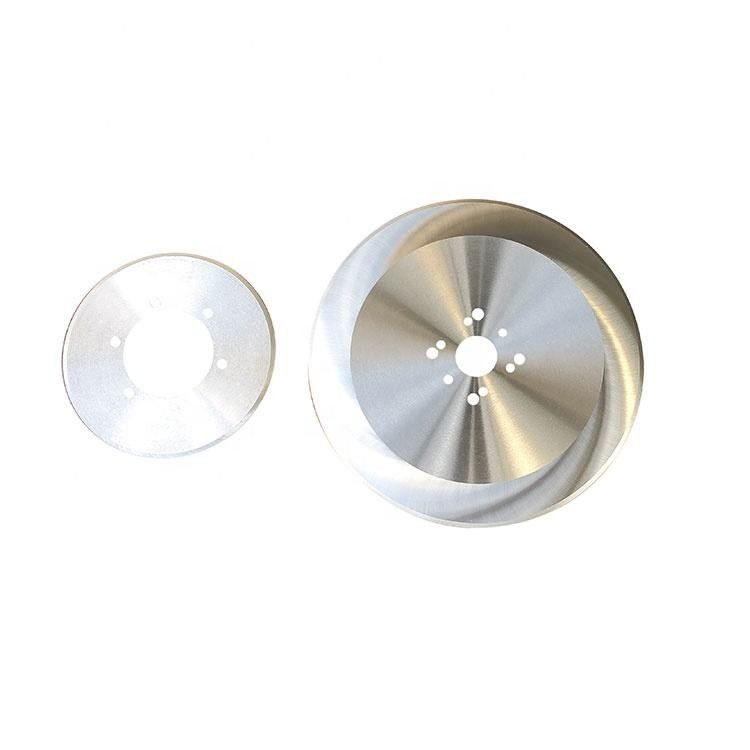

Rotary Shear Blades Circular Cutting Blades For Rotary Slitter Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | ISO9001 |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | anti-rust oil in plastic bag, Packed in strong plywood case |
| Delivery Time: | 35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Detail Information |
|||
| Name: | Circular Slitting Blades | Material: | SKD11,D2, M2, Cr12MoV, LD |
|---|---|---|---|
| Merits: | High Toughness,High Wear Resistance | Inner Diameter: | +0.02mm |
| Flatness: | ≤0.002mm | Parallelism: | ≤0.002mm |
| Concentricity: | ≤0.02mm | Surface Roundness: | Ra0.1um |
| Hardness: | Tool Steel: HRC58~61 | Application: | Steel Making Plant, Steel Pipes Plant, |
| Highlight: | Circular Cutting Blades HRC58,circular slitting knife HRC61,D2 Rotary Shear Blades |
||
Product Description
Rotary Shear Blades Slitting Circular Slitting Blade For Rotary Slitter Machine
◆ A wide selection of materials, like D-2,H-13,HSS,Solid Carbide etc.
◆ Single or Multi-Keyway lock and dirt groove available
◆ Cutting capacity ranging from 0.05mm to 25mm thick coil strips
◆ Tolerance up to 0.003 or +/-0.0025mm
◆ Forged and triple tempered to ensure the best hardness and wear-resistance
◆ Precision ground, polish, lapping finishes and even Ti-Coating finishes available
|
Size/material can be customized
|
|||||
|
Specification mm
|
Outer diameter
|
Inside diameter
|
thickness
|
Quenching HRC
|
Material
|
|
Φ95*Φ55*2
|
Φ95
|
Φ55
|
2
|
55°- 65°
|
HSS,SKD-11,SLD,SKH
|
|
Φ210*Φ100*5
|
Φ210
|
Φ100
|
5
|
||
|
Φ320*Φ200*10
|
Φ320
|
Φ200
|
10
|
||
|
Φ440*Φ280*30
|
Φ440
|
Φ280
|
30
|
||
|
Φ1200*Φ600*70
|
Φ1200
|
Φ600
|
70
|
||
Application of the Circular Slitting Blades for carbon steel coil processing:
1. for hot rolling mill: 1~12.7mm carbon steel coils and plates
2. for cold rolling mill: 0.02 ~3.2mm carbon steel coils and plates
Laying-off——Forging—— Annealing——Rough machining——Heat-treatment——Quenching——Cold and cryogenic treating——Tempering——Finish machining——Grinding——Inspection——Labeling——Packaging
Our Services:
Besides providing the high precision rotary slitting tools, we can provide corresponding services:
1. Design the slitting lines to meet the requirements of slitting system
2. Check and solve questions when happened during working
3. Adjust the gap between the top and bottom knife
4. Regrind the slitting tools
