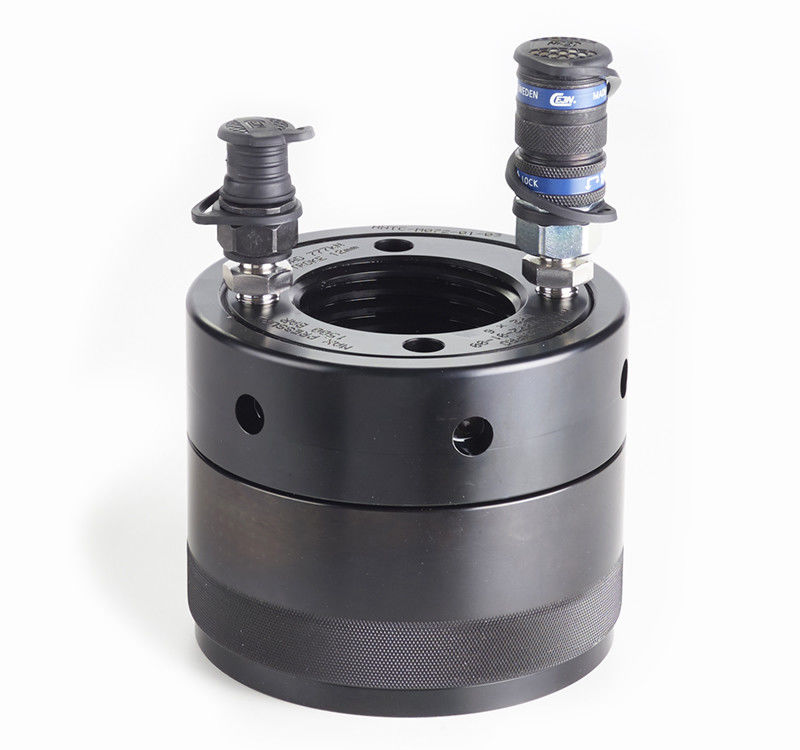

Bolt Tightening Machine Under Locking Type Hydraulic Nut Carbon steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Liangru |
| Certification: | CE ISO |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | film or plywood package suit for shipping |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Pcs /month |
|
Detail Information |
|||
| Finishing: | Galvanized, Nickel Plated | Standard: | ISO |
|---|---|---|---|
| Size: | 45 -m8 | Application: | Automotive Industry, General Industry, Heavy Industry |
| Material: | Carbon Steel | OEM: | YES |
| Highlight: | Locking Type Hydraulic Nut,galvanized hydraulic gland nut,Hydraulic Nut Carbon steel |
||
Product Description
Bolt Tightening Machine Cheap Under Locking Type Hydraulic Nut
Brief introduction:
- compact and have an economic design, easy to use
- Unique angled head design
- Single-acting, spring return cylinder
- Heavy duty chisels can be reground
- Nut splitters include spare chisel, spare set screw and wrench used to secure the chisel. A CR-400 coupler is standard.
- Hydraulic nut splitter applications include service trucks, piping industry, tank cleaning, petrochemical, steel construction, mining, etc.
Features:
1. Suitable for high temperature of 100℃.
2. Provide special seal when temperature is higher than 100℃.
3. Anti corrosion protective cap.
4. Spherical washers can be used if the interface is not at right angles.
Specifications:
|
Finishing
|
galvanized, Nickel Plated
|
|
Application
|
Automotive Industry, General Industry, Heavy Industry
|
|
Standard
|
ISO
|
|
Material
|
Carbon steel
|
|
Size
|
45 -m8
|
|
OEM
|
YES
|
|
Product name
|
Square Carbon Steel Insert Spring Lock Screw Bolt Fasten
|
|
Bolt Diameter (mm) |
Working Pressure (MPa) |
Max. Load (KN) |
Outside Diameter (mm) |
Height (mm) |
Stroke (mm) |
| M33 | 150 | 216 | 74 | 64 | 6 |
| M36 | 150 | 246 | 80 | 71 | 4 |
| M39 | 150 | 296 | 87 | 75 | 4 |
| M42 | 150 | 340 | 94 | 81 | 6 |
| M45 | 150 | 406 | 101 | 88 | 6 |
| M48 | 150 | 457 | 107 | 89 | 8 |
| M52 | 150 | 553 | 117 | 96 | 8 |
| M56 | 150 | 656 | 128 | 100 | 8 |
| M64 | 150 | 817 | 144 | 113 | 10 |
| M68 | 150 | 1008 | 157 | 119 | 10 |
| M72 | 150 | 1051 | 163 | 123 | 12 |
| M80 | 150 | 1459 | 187 | 142 | 12 |
| M90 | 150 | 1727 | 207 | 158 | 12 |
| M95 | 150 | 1965 | 219 | 166 | 12 |
| M100 | 150 | 2233 | 234 | 172 | 15 |
| M110 | 150 | 2688 | 255 | 184 | 15 |
| M125 | 150 | 3636 | 296 | 210 | 15 |
| M140 | 150 | 4371 | 328 | 238 | 15 |
| M150 | 150 | 5268 | 356 | 255 | 18 |
FAQ:
3. Q: Are you a factory or a trading company?
A: We are a professional factory who gets 20+ years of professional experience
5. Q: How long is your warranty?
A: Within 1 year from the date of the factory, if parts are a failure or are damaged the cause of a quality problem (except wearing parts), we provide these parts for free.
